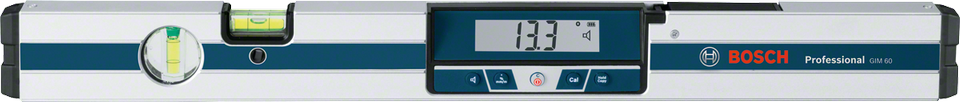

Bosch GIM60 600mm Digital Spirit Level
Precise digital inclinometer
- Measures precise tilts in degrees, percent or millimetres/metres
- Direction arrows and audible signals at 0° and 90° for easy alignment
- Measured values automatically turn on the display when working overhead
Tool features
Why this tool?
- Audible signal at 0° and 90°
- Easy calibration function for sustained accuracy
- Robust aluminium housing
- Slanted, easy-to-read display
- Two vials enable use as a spirit level
- More carrying comfort and safety due to shoulder bag
- IP54 protection
Technical data
Specification overview
| Length | 60 cm |
| Measurement range | 0 – 360° (4 x 90°) |
| Electronics measurement accuracy 0°/90° | ± 0.05° |
| Electronics measuring accuracy at 1– 89° | ± 0.2° |
| Measurement accuracy, vials | ± 0.057° = ± 1 mm/m |
| Weight approx. | 0.77 kg |
| Units of measurement | °, %, mm/m |
| Tripod thread | 1/4" |
