Bosch GSB24-2 Keyless 1100W Impact Drill
Bosch GSB24-2 Keyless 1100W Impact Drill
Bosch GSB24-2 Keyless 1100W Impact Drill

Bosch GSB24-2 Keyless 1100W Impact Drill

Technical data

The most important data
Rated input power 1,100 W
No-load speed 0 – 900 / 3.000 rpm
Power output 630 W
Weight 2.9 kg
Rated speed 580 / 1.900 rpm
Rated torque 9,6 / 3,2 Nm
Chuck capacity, min./max. 1,5 – 13 mm

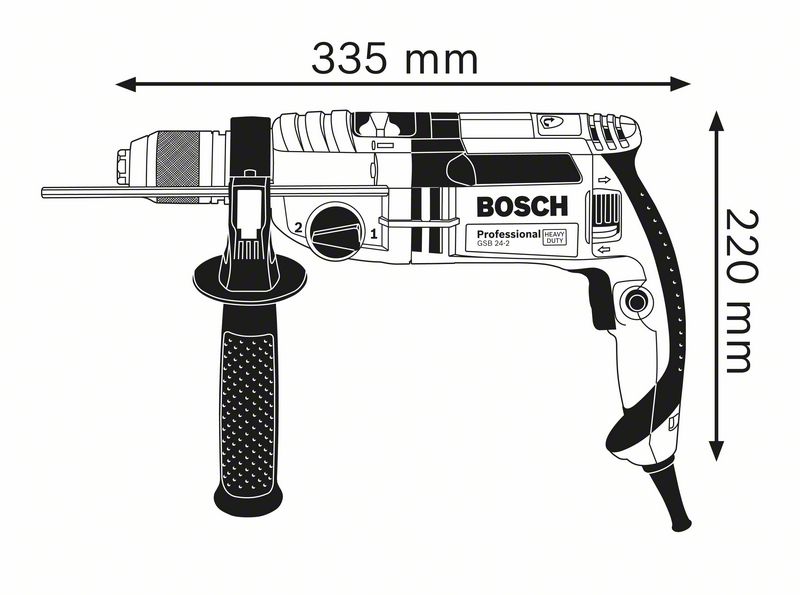

Tool dimensions (width) 90 mm
Tool dimensions (length) 335 mm
Tool dimensions (height) 220 mm
Impact rate at no-load speed 0 – 15.300 / 51.000 bpm
Max. torque 40,0 / 14,5 Nm
Packaging dimensions (width x length x height) 404 x 440 x 119 mm
Drill chuck, version 13-mm keyless chuck
Drilling range
Drilling diameter in concrete 22 / 13 mm
Drilling diameter in wood 40 / 25 mm
Drilling diameter in steel 16 / 8 mm
Drilling diameter in masonry 24 / 16 mm
Noise/vibration information

Total vibration values (vector sum of three directions)
Sound pressure level 95 dB(A)
Sound power level 106 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 5.6 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in concrete
Vibration emission value ah 14.6 m/s²
Uncertainty K 1.8 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

2-gear impact drill for toughest applications with KickBack Control



  • Strong 1,100 W high-performance motor and high torque make it ideal for most heavy-duty applications
  • KickBack Control increases user protection
  • Sturdy metal gear housing for a long tool lifetime

The GSB 24-2 Professional is a 2-gear corded impact drill with KickBack Control designed for the toughest jobs. Its strong 1,100 W high-performance motor and high torque make it ideal for most heavy duty applications. It also features KickBack Control for increased user protection. Equipped with a sturdy metal gear housing, this impact drill is extremely robust for a long tool lifetime.

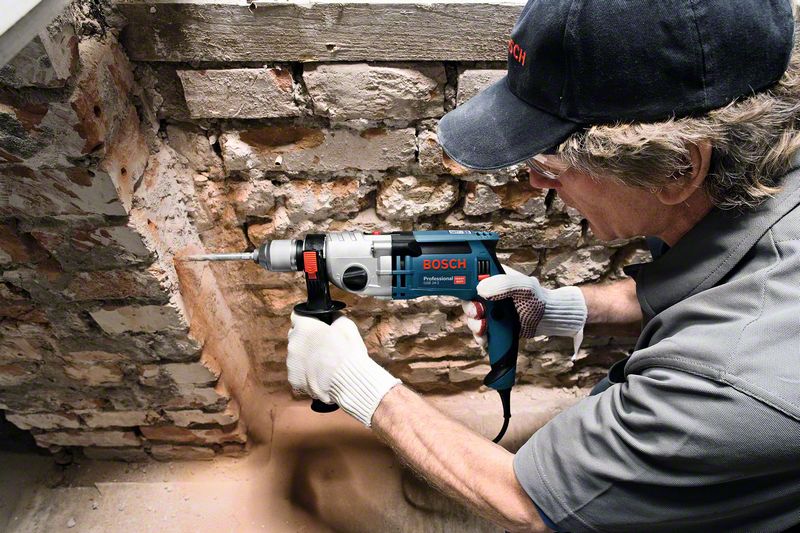

This tool is intended for drilling in concrete, stone, and masonry. It is compatible with the dust attachment GDE 16 Cyl Professional.

The GSB 24-2 Professional includes features such as Autolock, rotation control clutch, and speed selection.

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Metal chuck 1.5 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection for applications requiring material-specific speed
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
